WELDING MACHINES

MIG MULTI RANGE / MIG - MAG WELDERS

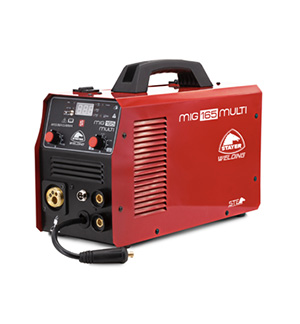

MIG 165 MULTI




SPECIFICATIONS

• Current: 160 A

• Voltage: 230 V

• Duty Cycle: 60 %

• Coated Electrodes: 1.6 – 4.0 mm

• Thread thickness: 0.6 – 0.8 – 0.9 mm

• Coil weight: 0.5 – 1 – 5 kg

• Generator: 5 – 7 KVA / 230V ±17%

• Dimensions: 42 x 31 x 18 cm

• Weight: 13 kg

• Borna connector: 3/8” (10 – 25) ø

• Power cord: 2m x 2.5 mm²

• Cable + ground clamp: 1.5m x 16 mm²

• Cable + electrode clamp: 2.5m – 16 mm²

• MIG torch: 15 AK

• Contact tip included: 1.0

• Sheaves included: 0.8 – 1.0

• Made: SPAIN



PRODUCT ADVANTAGES

• STAYER MIG MULTI range, with connection for EUROTORCH torch and with power of 160-170 amps.

• Designed for MIG, TIG and MMA processes of the highest quality.

• Easy setup in MIG mode, possibility to use gas or hollow wire without gas.

• With gas, connect torch return to positive terminal (+).

• Hollow wire without gas, connect torch return to negative terminal (-).

• Efficient and simple wire welding adjustment of only two buttons: one for control including speed mode and one for voltage. A switch enables the change of the wire work mode (MIG) and electrode mode (MMA) and TIG.

• Protection against over temperature and over currents.

• Very complete equipment including torches, sheave, ground cables and electrode holder

• IGBT technology based on state-of-the-art microprocessor control capable of providing up to 170 amps (MIG 170).

• Transportable and robust: Compact, low weight due to the use of fully inverter power circuitry. Oversized and quality components.

• MIG 160 for coils from 0.5 to 1Kg.

• MIG165 / 170 is for coils from 0.5 to 5Kg.

• Prepared for use with a stabilized generator, given its voltage input range of +/-17%.

• Equipment designed and manufactured in accordance with European regulations 2014/35/EU, 2014/30/EU and 2011/65/EU, which guarantee a solid construction and safety of use.
